materialdif.com Teflon insulation offers superior chemical and heat resistance compared to silicone insulation, making it ideal for high-temperature applications and harsh environments. Silicone insulation is more flexible and cost-effective, providing excellent electrical insulation but lower durability under extreme conditions. Choosing between Teflon and silicone insulation depends on specific requirements for thermal stability, flexibility, and exposure to chemicals.
Table of Comparison
| Feature | Teflon Insulation | Silicone Insulation |
|---|---|---|
| Temperature Range | -200degC to 260degC | -60degC to 200degC |
| Chemical Resistance | Excellent (resistant to acids, bases, solvents) | Good (resistant to oils, ozone, UV) |
| Flexibility | Moderate flexibility | High flexibility |
| Moisture Resistance | High (hydrophobic) | Moderate |
| Dielectric Strength | High (up to 60 kV/mm) | Moderate (up to 25 kV/mm) |
| Application Areas | High performance electronics, aerospace, chemical industry | Household appliances, automotive, medical devices |
| Cost | Higher | Lower |
Overview of Teflon and Silicone Insulation Materials
Teflon insulation, made from polytetrafluoroethylene (PTFE), offers exceptional chemical resistance, high temperature tolerance up to 260degC, and low friction properties, making it ideal for harsh industrial environments. Silicone insulation provides superior flexibility and elasticity, excelling in thermal stability with a temperature range from -60degC to 200degC, and is widely used in applications requiring resistance to moisture and UV radiation. Both materials serve diverse electrical insulation roles, with Teflon favored for extreme heat and chemical exposure, while silicone is preferred for flexible, outdoor, and low-temperature conditions.
Key Properties of Teflon Insulation
Teflon insulation exhibits exceptional chemical resistance, high-temperature tolerance up to 260degC, and a low coefficient of friction, making it ideal for harsh industrial environments. Its non-stick surface and excellent electrical insulation properties ensure reliable performance in critical applications such as aerospace and electronics. Unlike silicone insulation, Teflon offers superior durability against solvents, UV exposure, and mechanical wear, enhancing longevity in demanding conditions.
Key Properties of Silicone Insulation
Silicone insulation offers excellent thermal stability, operating efficiently in temperatures ranging from -60degC to 200degC, making it suitable for high-heat applications where Teflon insulation typically performs up to 260degC but can be less flexible. Its superior flexibility and resistance to moisture, UV radiation, and chemicals enhance durability in harsh environments compared to Teflon insulation. Silicone insulation's dielectric strength and low toxicity make it ideal for medical devices and electronics that demand reliable electrical insulation and safety.
Thermal Resistance: Teflon vs Silicone
Teflon insulation exhibits superior thermal resistance with a continuous service temperature up to 260degC (500degF), outperforming silicone insulation, which typically withstands temperatures up to 200degC (392degF). This makes Teflon ideal for high-temperature applications requiring durability against thermal degradation and chemical exposure. Silicone insulation offers flexibility and lower cost but lacks the same high-temperature resilience and chemical inertness found in Teflon.
Chemical Resistance Comparison
Teflon insulation offers superior chemical resistance compared to silicone insulation, effectively withstanding strong acids, bases, and solvents without degradation. Its unique polytetrafluoroethylene (PTFE) structure provides exceptional non-reactivity and stability across a wide pH range, making it ideal for harsh chemical environments. Silicone insulation, while flexible and heat-resistant, tends to be more susceptible to swelling and breakdown when exposed to aggressive chemicals.
Electrical Insulation Performance
Teflon insulation offers superior electrical insulation performance due to its high dielectric strength, typically around 500 to 700 volts per mil, making it ideal for high-temperature and high-frequency applications. Silicone insulation provides excellent flexibility and thermal stability but generally has a lower dielectric strength, approximately 400 volts per mil, which limits its effectiveness in extreme electrical environments. The chemical inertness and moisture resistance of Teflon insulation further enhance its reliability in harsh electrical conditions compared to silicone.
Flexibility and Mechanical Strength
Teflon insulation offers superior flexibility and excellent mechanical strength, making it ideal for applications requiring high durability and temperature resistance. Silicone insulation provides good flexibility but generally has lower mechanical strength compared to Teflon, limiting its use in environments with rigorous mechanical stress. Teflon's robustness and chemical inertness give it an edge over silicone where long-term mechanical performance and flexibility under harsh conditions are essential.
Cost Analysis: Teflon Versus Silicone
Teflon insulation generally incurs higher upfront costs compared to silicone due to its superior chemical resistance and temperature tolerance, making it ideal for specialized industrial applications. Silicone insulation offers a more cost-effective solution with adequate thermal stability and flexibility for standard electrical wiring and household use. Long-term durability and lower maintenance expenses of Teflon can offset initial investments, while silicone provides budget-friendly insulation for less demanding environments.
Common Applications for Teflon and Silicone Insulation
Teflon insulation is widely used in aerospace, automotive, and electronics industries due to its excellent chemical resistance, high-temperature tolerance up to 260degC, and low friction properties. Silicone insulation finds common applications in household appliances, medical devices, and automotive wiring harnesses because of its flexibility, resistance to moisture, and thermal stability ranging from -60degC to 200degC. Both materials serve critical roles in environments requiring reliable electrical insulation combined with durability under varying thermal and chemical conditions.
Which Insulation Material is Right for Your Application?
Teflon insulation offers exceptional chemical resistance, high-temperature tolerance up to 260degC, and low friction, making it ideal for harsh industrial environments and applications requiring durability. Silicone insulation provides superior flexibility, excellent electrical insulation, and operates effectively between -60degC and 200degC, suitable for electronic components and wiring in automotive or aerospace sectors. Choosing the right material depends on your application's temperature requirements, chemical exposure, and flexibility needs, with Teflon excelling in extreme conditions and silicone favored for pliability and ease of installation.

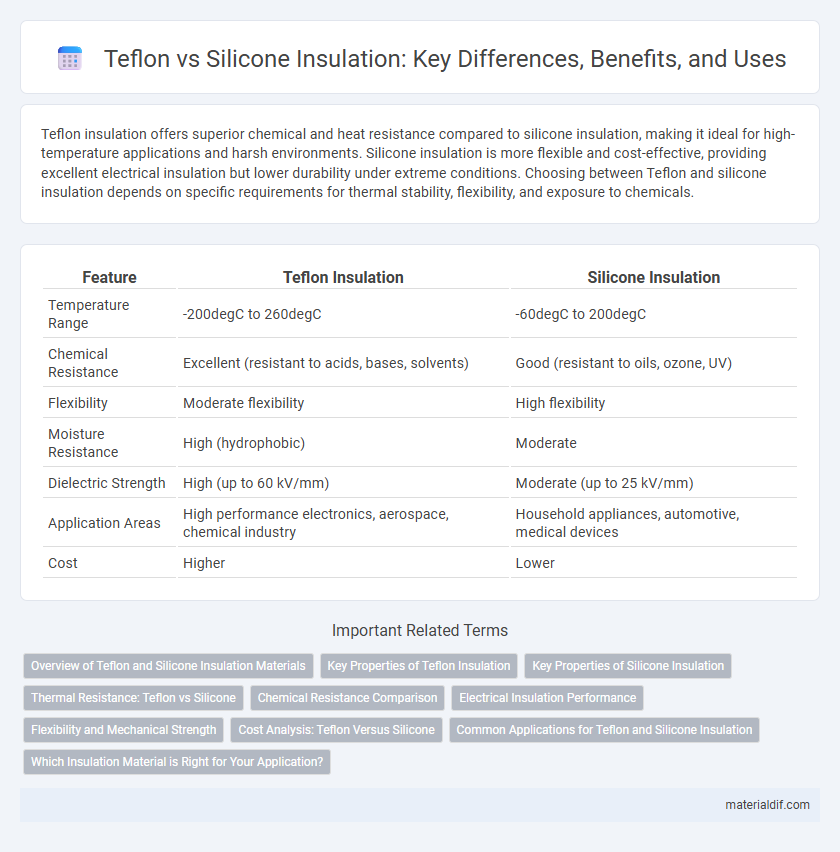

Teflon Insulation vs Silicone Insulation Infographic
