materialdif.com Graphite anodes offer stable cycling performance and long lifespan due to their well-established structure and compatibility with existing lithium-ion battery technology. Silicon anodes provide significantly higher capacity by accommodating more lithium ions, but they suffer from volume expansion and mechanical degradation that limit practical application. Innovations in composite materials and binder technologies aim to combine the durability of graphite with the high capacity of silicon for next-generation battery anodes.
Table of Comparison
| Feature | Graphite Anode | Silicon Anode |
|---|---|---|
| Material Composition | Carbon-based (graphite) | Silicon-based |
| Specific Capacity | ~372 mAh/g | Up to 4200 mAh/g |
| Volume Expansion | ~10% | Up to 300% |
| Cycle Life | 300-500 cycles (typical) | Limited, improving with composites |
| Energy Density | Standard | Higher potential |
| Cost | Lower, established technology | Higher, emerging technology |
| Stability | High | Challenging due to expansion |
| Commercial Use | Widely used in lithium-ion batteries | Under development, niche markets |
Introduction to Anode Materials in Batteries
Graphite anodes, widely used in lithium-ion batteries, offer stable cycling performance and excellent electrical conductivity, making them reliable for commercial applications. Silicon anodes provide a much higher theoretical capacity--approximately ten times that of graphite--due to their ability to alloy with lithium, but face challenges such as significant volume expansion and mechanical degradation during charge-discharge cycles. Advances in nanostructuring and composite materials aim to mitigate silicon's limitations, positioning it as a promising alternative to graphite for next-generation high-energy-density batteries.
What is a Graphite Anode?
Graphite anodes are widely used in lithium-ion batteries due to their stable structure and excellent electrical conductivity, enabling efficient lithium-ion intercalation and deintercalation. Composed of layered carbon atoms arranged in a hexagonal lattice, graphite anodes offer high cyclic stability and moderate capacity, typically around 372 mAh/g. Compared to silicon anodes, graphite delivers longer battery life and better safety, though with lower energy density.
What is a Silicon Anode?
A silicon anode is an advanced battery component designed to replace traditional graphite anodes, offering significantly higher energy storage capacity. Silicon anodes can store up to ten times more lithium ions than graphite, which enhances battery performance and extends electric vehicle driving ranges. Despite challenges like volume expansion and mechanical degradation, ongoing research aims to optimize silicon anodes for commercial lithium-ion batteries.
Electrochemical Performance: Graphite vs Silicon
Graphite anodes offer stable electrochemical performance with a theoretical capacity of approximately 372 mAh/g, providing consistent cycle life and efficiency in lithium-ion batteries. Silicon anodes deliver significantly higher capacity, up to 4200 mAh/g, but experience substantial volume expansion causing mechanical degradation and capacity fade over repeated cycles. Advances in silicon anode engineering aim to mitigate these issues, enhancing cycle stability while maximizing energy density beyond traditional graphite performance.
Energy Density Comparison
Graphite anodes typically offer an energy density of about 250-350 mAh/g, while silicon anodes can achieve much higher capacities up to 3,000-4,200 mAh/g, significantly increasing the overall battery energy density. However, silicon anodes face challenges such as volume expansion and cycle stability, which impact their practical energy density advantages. The integration of silicon into graphite matrices aims to balance energy density improvements with enhanced structural stability in lithium-ion batteries.
Cycle Life and Stability
Graphite anodes exhibit superior cycle life and stability compared to silicon anodes, maintaining structural integrity over thousands of charge-discharge cycles due to low volumetric expansion. Silicon anodes, while offering higher capacity, suffer from significant volume changes up to 300%, leading to electrode pulverization and rapid capacity fading. Innovations in silicon composite anodes aim to mitigate these issues, but graphite remains the benchmark for long-term cycling stability in lithium-ion batteries.
Cost Analysis: Graphite vs Silicon Anodes
Graphite anodes offer a cost advantage over silicon anodes due to well-established production processes and abundant raw materials, resulting in lower manufacturing expenses. Silicon anodes, while promising higher capacity and energy density, currently face elevated costs driven by complex fabrication techniques and material scalability challenges. The cost gap between graphite and silicon anodes remains a critical factor influencing commercial adoption, with graphite maintaining dominance in cost-sensitive battery markets.
Challenges in Silicon Anode Implementation
Silicon anodes offer significantly higher theoretical capacity than graphite anodes, reaching up to 4200 mAh/g compared to graphite's 372 mAh/g. However, silicon anodes face critical challenges including substantial volume expansion of up to 300% during lithiation, leading to mechanical degradation and loss of electrical connectivity. These issues result in poor cycle stability, capacity fading, and require advanced materials engineering solutions such as nanostructuring and composite formation to improve silicon anode longevity.
Recent Innovations in Anode Materials
Recent innovations in anode materials highlight the shift from traditional graphite anodes to silicon anodes, driven by silicon's superior energy density and capacity for lithium-ion storage. Silicon anodes, despite challenges such as volume expansion and mechanical degradation, are being enhanced through nano-structuring, composite formation, and surface coating techniques to improve cycle stability and conductivity. Advances in silicon-graphite composite anodes aim to combine the high capacity of silicon with the structural stability of graphite, accelerating commercial viability in high-performance lithium-ion batteries.
Future Outlook: Graphite and Silicon in Battery Technology
Graphite anodes currently dominate lithium-ion battery technology due to their stability, cost-effectiveness, and well-established manufacturing processes, ensuring continued widespread use in electric vehicles and consumer electronics. Silicon anodes, offering significantly higher theoretical capacity--up to 10 times that of graphite--are at the forefront of research aimed at overcoming challenges such as volume expansion and cycle degradation to enable next-generation high-energy batteries. Advances in composite materials, nanostructuring, and binder chemistry are expected to enhance silicon anode durability, positioning them as a critical component in the future of high-capacity, fast-charging battery systems.

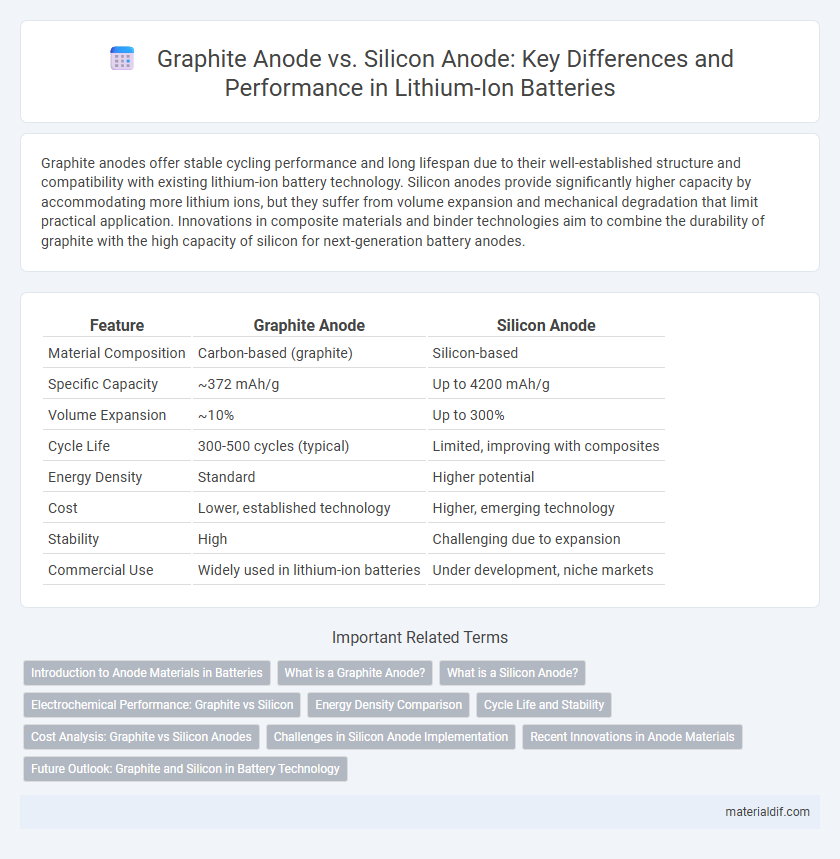

Graphite anode vs Silicon anode Infographic
