materialdif.com Laminated glass consists of two or more layers of glass bonded with an interlayer, providing enhanced safety and noise reduction by holding shards together upon impact. Insulated glass, also called double glazing, features two or more glass panes separated by a sealed air or gas-filled space to improve thermal insulation and energy efficiency. While laminated glass excels in security and soundproofing, insulated glass is preferred for temperature control and reducing energy costs.
Table of Comparison
| Feature | Laminated Glass | Insulated Glass |
|---|---|---|
| Composition | Two or more glass layers bonded with a plastic interlayer (usually PVB) | Two or more glass panes separated by an air or gas-filled spacer |
| Sound Insulation | High - effectively reduces noise transmission | Moderate - depends on air gap and gas fill |
| Thermal Insulation | Low - single glass unit with interlayer offers minimal insulation | High - air or gas layers provide strong thermal resistance |
| Safety | Excellent - interlayer holds shards on breakage | Good - multiple panes reduce breakage risk but shards can scatter |
| UV Protection | Strong - interlayer blocks most UV rays | Variable - depends on glass type and coatings |
| Weight | Heavier due to interlayer | Lighter per unit thickness |
| Cost | Moderate to High | Moderate |
Introduction to Laminated Glass and Insulated Glass
Laminated glass consists of two or more glass layers bonded together with a plastic interlayer, providing enhanced safety and sound insulation. Insulated glass, also known as double glazing, features two or more glass panes separated by an air or gas-filled gap to improve thermal insulation and reduce energy loss. Both types of glass serve distinct purposes in building and automotive applications, with laminated glass prioritizing impact resistance and insulated glass enhancing energy efficiency.
Composition and Structure Differences
Laminated glass consists of two or more glass layers bonded with an interlayer, typically polyvinyl butyral (PVB), providing enhanced safety and sound insulation. Insulated glass, also known as double-glazing, comprises two or more glass panes separated by an air or gas-filled cavity that improves thermal insulation and energy efficiency. The key structural difference lies in laminated glass's bonded interlayer for impact resistance, while insulated glass relies on sealed air spaces for temperature regulation.
Thermal Insulation Properties
Laminated glass consists of multiple layers bonded with an interlayer, offering moderate thermal insulation by reducing heat transfer through its construction. Insulated glass, also known as double or triple glazing, contains air or gas-filled spaces between glass panes, significantly enhancing thermal insulation by minimizing conduction and convection. The performance of insulated glass typically surpasses laminated glass due to its superior ability to maintain indoor temperatures and reduce energy consumption.
Acoustic Performance Comparison
Laminated glass features an interlayer that significantly dampens sound vibrations, providing superior acoustic insulation compared to insulated glass. Insulated glass consists of two or more glass panes separated by an air or gas-filled space, which reduces noise transmission primarily through air cavity buffering. For environments requiring higher noise reduction, laminated glass typically offers enhanced soundproofing due to its ability to absorb and reduce sound energy more effectively than standard insulated glass units.
Safety and Security Features
Laminated glass consists of two or more glass layers bonded with an interlayer, providing superior safety by holding shards together upon impact, reducing injury risks and enhancing security against forced entry. Insulated glass, composed of two or more glass panes separated by a gas-filled space, primarily improves thermal efficiency but offers limited impact resistance compared to laminated glass. For applications requiring enhanced protection from breakage and intrusion, laminated glass is the preferred choice due to its structural integrity and shatter-resistant properties.
Energy Efficiency Benefits
Laminated glass enhances energy efficiency by providing superior sound insulation and preventing heat transfer through its polyvinyl butyral (PVB) interlayer, which helps maintain indoor temperature stability. Insulated glass, typically consisting of two or more glass panes separated by a gas-filled space like argon or krypton, significantly reduces heat loss and gain, offering higher thermal performance. Both laminated and insulated glass contribute to energy savings, but insulated glass excels in minimizing energy consumption for heating and cooling in residential and commercial buildings.
Applications in Residential and Commercial Buildings
Laminated glass offers enhanced safety and sound insulation, making it ideal for residential windows, skylights, and commercial storefronts requiring impact resistance and security. Insulated glass, with its dual-pane design and gas fill, excels in energy efficiency and thermal insulation, suited for both residential windows and commercial curtain walls to reduce heating and cooling costs. Both glass types improve comfort and building performance, with laminated glass favored for safety applications and insulated glass prioritized for energy savings in modern construction.
Design and Customization Options
Laminated glass offers versatile design options through its ability to incorporate colored interlayers, patterns, and textures, enhancing aesthetic appeal and safety simultaneously. Insulated glass provides customization by combining multiple glass panes with gas fills and coatings, optimizing thermal performance without compromising design flexibility. Both types enable tailored solutions for architectural applications, balancing visual style with functional requirements.
Maintenance and Longevity
Laminated glass features a polyvinyl butyral (PVB) interlayer that enhances durability by holding glass layers together when shattered, reducing maintenance needs related to breakage. Insulated glass units (IGUs) consist of two or more glass panes separated by a spacer, providing better thermal performance but requiring careful seal maintenance to prevent moisture ingress and fogging. Proper upkeep of laminated glass is generally less intensive, while insulated glass demands periodic inspection of seals to extend lifespan and maintain energy efficiency.
Cost Analysis and Value Proposition
Laminated glass typically costs less upfront than insulated glass but offers superior safety and soundproofing benefits due to its inner interlayer, making it ideal for security-focused applications. Insulated glass, while more expensive, provides enhanced thermal insulation and energy savings through multiple glass layers separated by air or gas fills, benefiting long-term operational costs. Evaluating cost against value, laminated glass suits budgets needing impact resistance, whereas insulated glass delivers optimal energy efficiency and comfort for sustainable building investments.

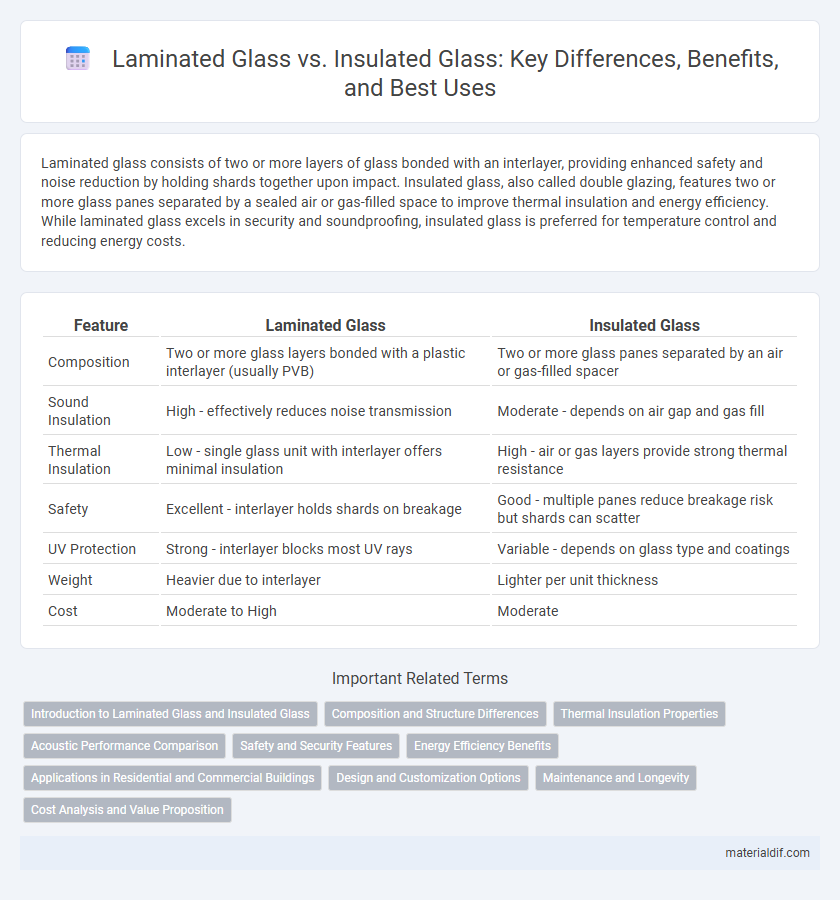

Laminated glass vs Insulated glass Infographic
