materialdif.com Silicone encapsulation provides a thin, protective layer that shields electronic components from moisture, dust, and mechanical damage while maintaining flexibility and thermal stability. Silicone potting involves filling the entire cavity around components with silicone material, offering enhanced mechanical support, vibration dampening, and superior environmental protection. Choosing between silicone encapsulation and potting depends on the required level of protection, thermal management, and mechanical stress resistance for the specific application.
Table of Comparison
| Feature | Silicone Encapsulation | Silicone Potting |
|---|---|---|
| Purpose | Protects delicate electronic components with a thin silicone layer. | Encases entire components or assemblies in solid silicone for full protection. |
| Protection Level | Moisture, dust, and environmental protection with flexibility. | High mechanical strength, vibration resistance, and moisture barrier. |
| Application Thickness | Thin coating (usually less than 1mm thick). | Thick layer, often several millimeters to centimeters. |
| Curing Time | Fast curing, typically minutes to hours. | Longer curing time, hours to days depending on volume. |
| Flexibility | High flexibility, ideal for sensitive components. | Moderate flexibility, suited for rugged environments. |
| Thermal Management | Moderate heat dissipation. | Enhanced thermal conductivity options available. |
| Repairability | Relatively easy to rework or repair. | Difficult to remove and rework. |
| Cost | Lower material and processing cost. | Higher cost due to volume and processing complexity. |
Understanding Silicone Encapsulation and Silicone Potting
Silicone encapsulation involves applying a thin, protective silicone layer over electronic components to shield them from moisture, dust, and mechanical stress while allowing heat dissipation. Silicone potting, by contrast, involves fully embedding components in silicone resin, providing enhanced vibration resistance and superior environmental protection for harsh conditions. Both methods use silicone for insulation and durability, but encapsulation is preferred for lightweight protection, whereas potting offers robust, comprehensive shielding against physical and chemical damage.
Key Differences Between Silicone Encapsulation and Potting
Silicone encapsulation involves applying a thin protective layer over electronic components to shield them from moisture, dust, and mechanical stress, while silicone potting entails fully embedding the components in a silicone compound for maximum protection and enhanced thermal management. Encapsulation provides flexibility and easier rework, favored in applications requiring minimal added weight and volume, whereas potting offers superior vibration resistance and electrical insulation, critical for harsh environments. Key differences include the thickness of silicone applied, degree of protection, thermal conductivity, and ease of maintenance in electronics and sensor manufacturing industries.
Advantages of Silicone Encapsulation
Silicone encapsulation offers superior protection against moisture, dust, and thermal shocks, making it ideal for sensitive electronic components in harsh environments. Its high flexibility and excellent dielectric properties enhance the durability and performance of encapsulated devices without adding significant weight. The material's biocompatibility and resistance to UV and chemicals ensure long-lasting reliability in medical and outdoor applications.
Benefits of Silicone Potting in Electronics
Silicone potting offers superior protection for electronic components by providing excellent moisture resistance and enhanced thermal stability, which helps prevent damage from environmental factors and prolongs device lifespan. Its ability to effectively absorb vibrations and shocks reduces mechanical stress, ensuring reliable performance in harsh conditions. This method also allows for better electrical insulation and reduces the risk of short circuits, making it ideal for sensitive and high-performance electronics.
Application Areas: Encapsulation vs Potting
Silicone encapsulation is primarily used in electronics and microelectronics to protect sensitive components like sensors, LEDs, and PCBs from moisture, dust, and mechanical stress while maintaining electrical insulation and heat dissipation. Silicone potting is favored in industrial and automotive applications, providing robust protection for larger assemblies such as connectors, transformers, and power modules against vibration, shock, and harsh environmental conditions. Both methods enhance device reliability, but encapsulation suits precision protection in compact devices, whereas potting is designed for heavy-duty insulation and mechanical stability.
Material Properties: Silicone Encapsulation vs Potting
Silicone encapsulation provides a thin, flexible protective layer that shields sensitive electronic components from moisture, dust, and mechanical stress without significantly adding bulk or weight. Silicone potting involves filling cavities completely with a thicker, more rigid material, offering superior vibration damping, thermal stability, and enhanced durability against harsh environmental conditions. Both methods leverage silicone's excellent electrical insulation, chemical resistance, and thermal resistance, but encapsulation prioritizes lightweight protection while potting emphasizes robust mechanical support.
Process Comparison: Encapsulation and Potting Techniques
Silicone encapsulation involves applying a thin protective layer over electronic components, enhancing moisture resistance and electrical insulation while maintaining component accessibility. Silicone potting fills entire enclosures with silicone, providing superior mechanical strength, vibration damping, and comprehensive environmental protection. Both processes use silicone's thermal stability and chemical resistance, but encapsulation favors lightweight protection whereas potting ensures robust, long-term durability in harsh conditions.
Environmental Resistance: How Each Method Protects Components
Silicone encapsulation provides a thin, flexible protective layer that shields electronic components from moisture, dust, and temperature variations, offering excellent environmental resistance with minimal added weight. Silicone potting involves filling the entire cavity around a component with a durable silicone compound, resulting in superior protection against mechanical shock, vibration, and harsh chemicals, making it ideal for extreme environmental conditions. Both methods leverage silicone's inherent thermal stability and hydrophobic properties, but potting ensures more comprehensive sealing and impact resistance for sensitive electronics.
Cost Considerations: Encapsulation vs Potting Solutions
Silicone encapsulation generally offers a lower upfront material cost compared to silicone potting due to the thinner layer application and reduced silicone volume. Potting solutions, while more expensive initially, provide superior protection and durability, potentially lowering long-term costs by minimizing device failures and maintenance. The choice between encapsulation and potting hinges on balancing budget constraints with the required level of environmental protection and product longevity.
Choosing Between Silicone Encapsulation and Potting for Your Needs
Silicone encapsulation provides a thin, protective layer ideal for sensitive electronic components requiring flexibility and moisture resistance, while silicone potting offers a thicker, more robust barrier suited for harsh environments with mechanical stress and vibration. Choosing between encapsulation and potting depends on factors such as thermal conductivity, dielectric strength, and environmental exposure, with potting often favored for rugged industrial applications and encapsulation for delicate, high-precision devices. Consider the specific requirements of heat dissipation, chemical resistance, and reworkability to determine the best silicone solution for your project.

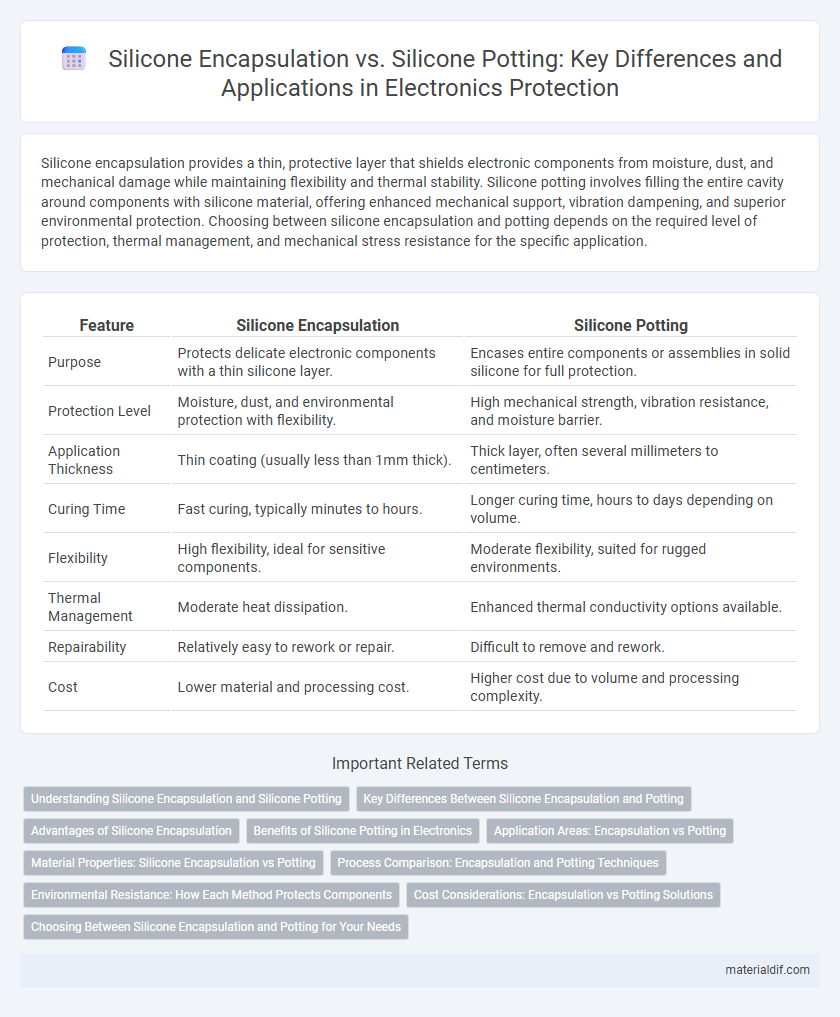

Silicone Encapsulation vs Silicone Potting Infographic
