materialdif.com Silicone potting offers superior flexibility and temperature resistance compared to epoxy potting, making it ideal for applications requiring durability under thermal stress. Unlike rigid epoxy, silicone maintains elasticity over time, preventing cracks and protecting sensitive components from moisture and vibration. Its excellent electrical insulation properties also enhance performance in electronic and automotive industries.
Table of Comparison
| Feature | Silicone Potting | Epoxy Potting |
|---|---|---|
| Material Type | Flexible, elastomeric polymer | Rigid, thermosetting resin |
| Thermal Stability | Excellent heat resistance up to 200degC | Good heat resistance up to 150degC |
| Moisture Resistance | Superior moisture and water repellency | Moderate moisture resistance; can absorb water |
| Electrical Insulation | High dielectric strength, ideal for electronics | Good electrical insulation, but less flexible |
| Cure Time | Fast room temperature cure (hours) | Slower cure, often requires heat (hours to days) |
| Flexibility | Highly flexible, resists cracking and vibration | Rigid and brittle; prone to cracking |
| Chemical Resistance | Good resistance to chemicals and UV | Strong chemical resistance but less UV stable |
| Application | Electronics, automotive, harsh environments | Electronics, structural potting, rigid bonding |
| Cost | Higher material cost but longer durability | Lower initial cost but less flexible performance |
Introduction to Silicone and Epoxy Potting Materials
Silicone potting materials offer excellent thermal stability, flexibility, and superior resistance to moisture and chemicals, making them ideal for protecting sensitive electronic components. Epoxy potting compounds provide high mechanical strength and electrical insulation but tend to be more rigid and less resistant to thermal cycling and environmental stress. Choosing between silicone and epoxy potting depends on the specific application requirements, including temperature range, mechanical stress, and exposure to environmental factors.
Key Differences Between Silicone and Epoxy Potting
Silicone potting offers superior flexibility and thermal stability compared to epoxy potting, making it ideal for applications exposed to temperature fluctuations and vibration. Epoxy potting provides higher mechanical strength and chemical resistance, ensuring robust protection in harsh environments but can be more brittle over time. Key differences include silicone's excellent electrical insulation and UV resistance versus epoxy's stronger adhesion and rigidity.
Advantages of Silicone Potting Compounds
Silicone potting compounds offer superior thermal stability, maintaining performance across a wide temperature range from -60degC to 200degC, which outperforms typical epoxy potting materials. Their exceptional flexibility and elongation properties absorb mechanical stresses and vibrations effectively, reducing the risk of cracking or damage in sensitive electronic components. Silicone potting also provides excellent moisture resistance and electrical insulation, ensuring reliable protection in harsh environmental conditions.
Advantages of Epoxy Potting Compounds
Epoxy potting compounds offer superior chemical resistance and excellent mechanical strength, making them ideal for protecting electronics in harsh environments. Their strong adhesion to a variety of substrates ensures long-lasting encapsulation and protection against moisture and contaminants. Epoxy potting materials also provide high thermal stability, enabling reliable performance under elevated temperatures.
Thermal Performance: Silicone vs Epoxy Potting
Silicone potting compounds offer superior thermal performance with high thermal stability and excellent heat dissipation, maintaining flexibility across a wide temperature range from -60degC to 200degC. Epoxy potting materials provide strong mechanical protection but generally have lower thermal conductivity and become brittle under thermal cycling or extreme temperatures. For applications requiring efficient heat transfer and long-term durability in harsh thermal environments, silicone potting is often preferred over epoxy.
Electrical Insulation Properties Comparison
Silicone potting offers superior electrical insulation with a high dielectric strength typically ranging between 15 to 25 kV/mm, making it ideal for protecting sensitive electronic components from moisture and voltage spikes. In comparison, epoxy potting compounds have a dielectric strength of approximately 13 to 20 kV/mm but tend to be more rigid and may develop cracks under thermal stress, which can compromise insulation. Silicone's flexibility and excellent thermal stability contribute to maintaining consistent electrical insulation performance in harsh environments.
Chemical Resistance: Silicone Potting vs Epoxy Potting
Silicone potting offers superior chemical resistance against a broad spectrum of solvents, acids, and bases, making it ideal for harsh industrial environments. Epoxy potting provides excellent mechanical strength but is generally less resistant to chemicals, especially when exposed to prolonged contact with oils and solvents. Selecting silicone potting enhances durability and protection for sensitive electronics or components subjected to aggressive chemical conditions.
Flexibility and Mechanical Properties Analysis
Silicone potting materials offer superior flexibility and excellent mechanical properties, making them ideal for applications requiring vibration damping and thermal expansion accommodation. Compared to epoxy potting, silicone provides higher elongation at break and better strain relief, resulting in enhanced durability under mechanical stress. Epoxy potting materials, while offering greater hardness and chemical resistance, are more brittle and less capable of absorbing mechanical shock or repeated flexing.
Cost Considerations: Silicone vs Epoxy Potting
Silicone potting generally incurs higher material costs compared to epoxy potting due to its superior flexibility, temperature resistance, and electrical insulation properties. Epoxy potting offers a more budget-friendly option, especially for applications requiring rigidity and chemical resistance but less thermal endurance. Cost considerations should also include long-term performance and maintenance, as silicone's durability can reduce replacement frequency and overall lifecycle expenses.
Choosing the Right Potting Material for Your Application
Silicone potting offers superior flexibility, thermal stability, and resistance to moisture, making it ideal for electronics exposed to harsh environments or temperature fluctuations. Epoxy potting provides exceptional mechanical strength and chemical resistance but tends to be more rigid and less tolerant to thermal cycling. Selecting the right potting material depends on your application's requirements for flexibility, thermal endurance, chemical exposure, and environmental conditions to ensure optimal protection and longevity.

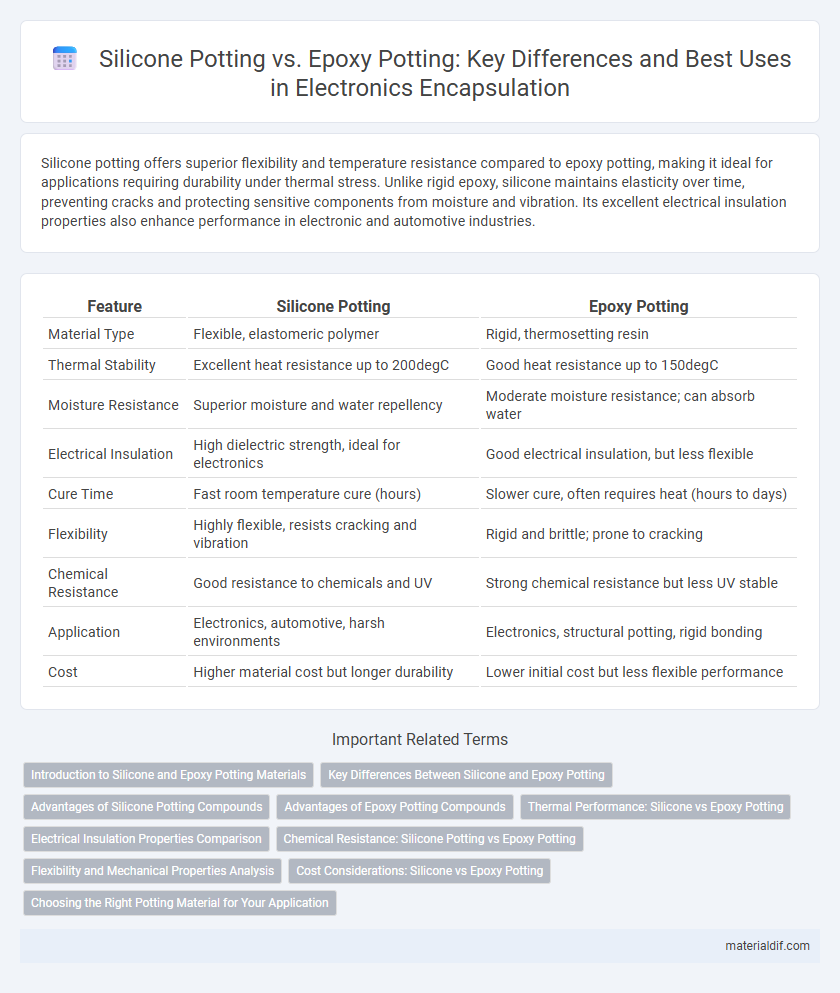

Silicone Potting vs Epoxy Potting Infographic
