materialdif.com Injection molding of silicone offers precise control and high repeatability, making it ideal for complex shapes and high-volume production. Compression molding, on the other hand, is better suited for simpler designs and lower production volumes, with advantages in material savings and lower tooling costs. Choosing between these methods depends on the desired part complexity, production scale, and cost efficiency.
Table of Comparison
| Criteria | Injection Molding | Compression Molding |
|---|---|---|
| Process | Injecting liquid silicone into a closed mold under high pressure | Placing silicone preform into an open mold, then applying heat and pressure |
| Material | Liquid Silicone Rubber (LSR) | Solid Silicone Rubber (HTV or RTV) |
| Cycle Time | Shorter, typically 30-90 seconds per part | Longer, usually 2-10 minutes per part |
| Precision | High dimensional accuracy and fine feature detail | Lower precision, suitable for larger or simpler parts |
| Production Volume | Ideal for high-volume, consistent production | Better suited for low to medium volume runs |
| Tooling Cost | Higher due to complex molds and injection systems | Lower, simpler mold construction |
| Part Complexity | Supports complex geometries and multi-shot molding | Limited to simpler shapes and single-shot molding |
| Waste | Minimal, precise shot sizes reduce material waste | Higher, excess material trimmed post-curing |
| Typical Applications | Medical devices, seals, gaskets, and precision components | Automotive parts, vibration dampeners, large seals |
Introduction to Silicone Molding Methods
Silicone injection molding offers precise control over complex shapes and fine details, delivering high-volume production efficiency with consistent part quality. Compression molding, meanwhile, is well-suited for simpler geometries and larger silicone parts, utilizing lower tooling costs and a straightforward process. Both methods leverage silicone's flexibility and durability but differ significantly in cycle time, cost-efficiency, and suitable application scopes.
What is Injection Molding for Silicone?
Injection molding for silicone involves injecting liquid silicone rubber (LSR) into a heated mold cavity, where it rapidly cures to form precise, high-quality parts with intricate details. This automated process offers excellent repeatability and is ideal for high-volume production of complex silicone components used in medical devices, automotive parts, and consumer goods. Temperature control and vacuum systems in injection molding ensure reduced air entrapment and improved part consistency compared to other molding methods.
What is Compression Molding for Silicone?
Compression molding for silicone involves placing pre-measured silicone material into a heated mold cavity, where pressure is applied to shape and cure the silicone. This process is ideal for producing large, intricate silicone parts with consistent thickness and high durability. Compression molding offers advantages such as reduced material waste and excellent control over part size and mechanical properties compared to other molding methods.
Key Differences: Injection vs Compression Molding
Injection molding of silicone offers precise dimensional control and high production speed by injecting liquid silicone rubber into a mold, making it ideal for complex and detailed parts. Compression molding involves placing silicone material directly into a heated mold and applying pressure, providing cost-effective production for simpler geometries and larger parts. The key differences lie in injection molding's suitability for intricate designs and higher volume manufacturing, whereas compression molding excels in low-cost tooling and processing of bulkier components.
Material Properties Affected by Molding Processes
Injection molding of silicone enhances material consistency and allows for tight dimensional tolerances, resulting in parts with superior surface finish and complex geometries. Compression molding, while simpler and cost-effective for large parts, can lead to variable material density and less uniform mechanical properties due to uneven heat distribution. Both processes influence silicone's final elasticity, tensile strength, and thermal stability, with injection molding generally yielding higher precision and performance in critical applications.
Production Efficiency: Cycle Time and Scale
Injection molding of silicone offers faster cycle times typically ranging from 30 to 90 seconds per part, significantly enhancing production efficiency for large-scale manufacturing. Compression molding, with cycle times often exceeding several minutes, suits lower volume runs but limits rapid scaling due to longer cure times. The ability of injection molding to automate and produce complex parts consistently makes it the preferred choice for high-volume silicone component production.
Cost Comparison: Tooling, Labor, and Production
Injection molding of silicone requires higher upfront tooling costs due to complex molds designed for precision and automation, but it benefits from lower labor expenses and faster production cycles, making it cost-effective for large volumes. Compression molding involves simpler, less expensive tooling and relatively higher labor input because of manual or semi-automated processes, which makes it more suitable for low to medium production runs. Overall, injection molding offers reduced per-unit costs at scale, while compression molding minimizes initial investment and is optimal for smaller batches.
Design Flexibility and Part Complexity
Injection molding offers superior design flexibility and enables the creation of highly complex silicone parts with intricate geometries and precise tolerances. Compression molding is better suited for simpler silicone components and often struggles with tight dimensional control and complex shapes. For applications demanding detailed features and consistent repeatability, injection molding is typically the preferred manufacturing method.
Typical Applications for Each Molding Method
Injection molding of silicone is commonly used for producing complex, high-precision parts such as medical devices, automotive components, and electronic seals due to its ability to deliver consistent quality and intricate geometries. Compression molding suits larger, simpler silicone parts like gaskets, seals, and custom rubber products where lower tooling costs and material efficiency are priorities. Typical industries employing injection molding include aerospace and consumer electronics, while compression molding is favored in industrial manufacturing and household appliance production.
Choosing the Right Silicone Molding Process
Injection molding offers precise control and high production rates for complex silicone parts, making it ideal for intricate designs and large-volume manufacturing. Compression molding provides superior material efficiency and is better suited for simpler shapes or low to medium production runs due to lower initial tooling costs. Selecting the right silicone molding process depends on factors like part complexity, production volume, and cost constraints.

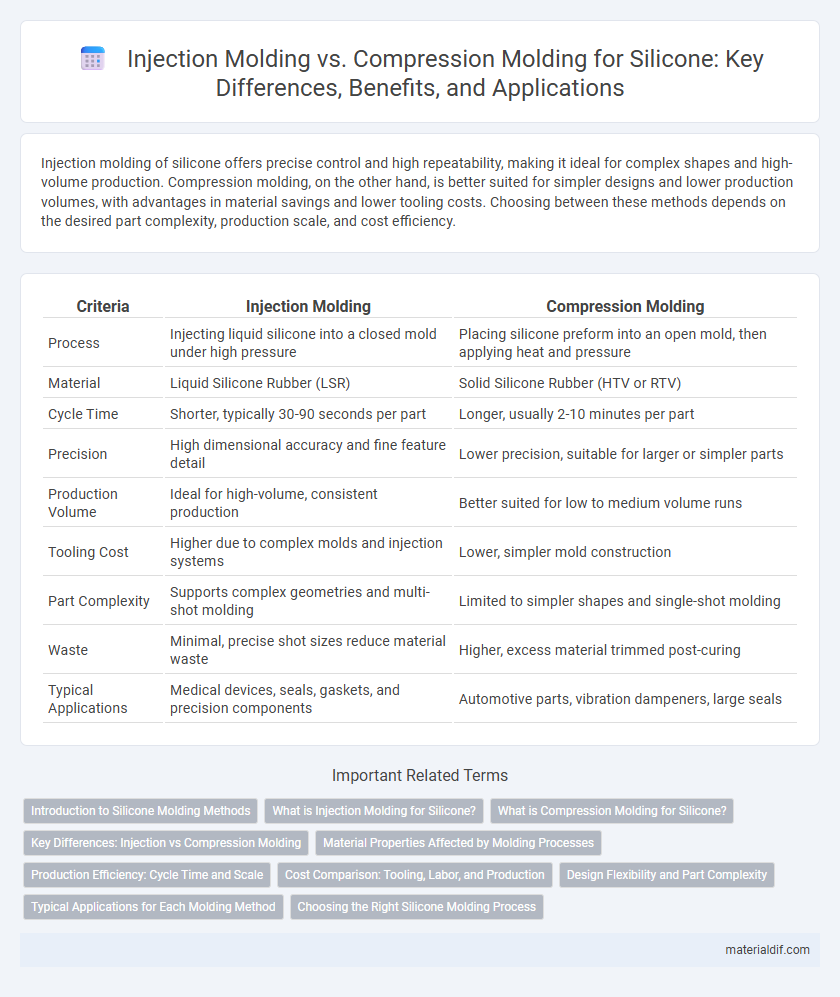

Injection Molding vs Compression Molding (for silicone) Infographic
